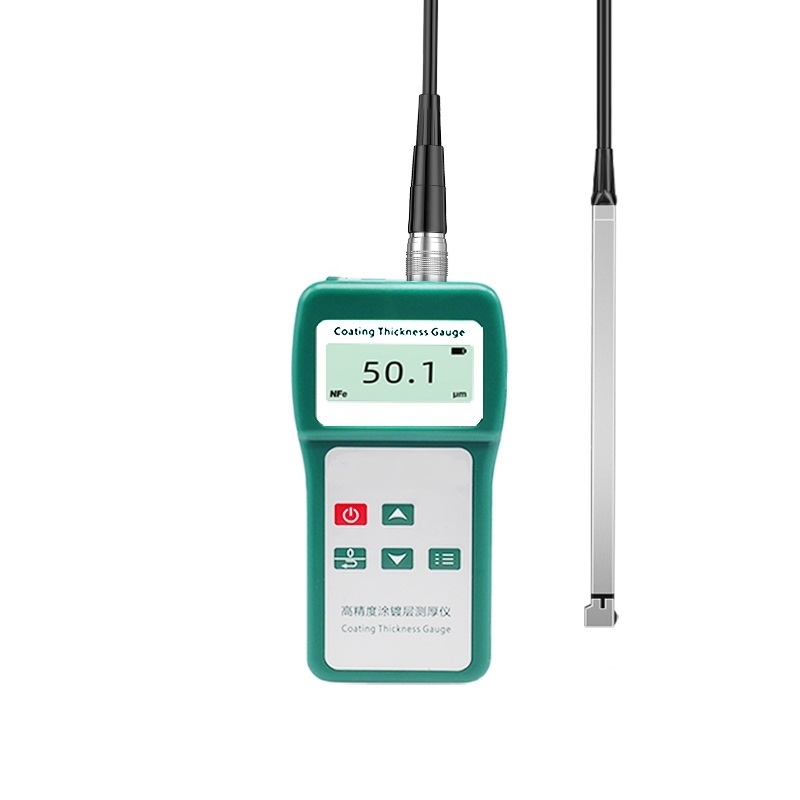

LY-600F190 Specialized Coating Thickness Gauge enables non-destructive measurement of non-magnetic coatings (e.g., aluminum, chromium, copper, enamel, rubber, paint, etc.) on magnetic metal substrates (e.g., steel, iron, alloys, hard magnetic steel, etc.) for pipeline inner walls.

1. Features

* Spring-guided probe with ultra-wear-resistant alloy tip ensures consistent contact pressure and stable measurement accuracy even on hard or rough surfaces, with a durability exceeding 500,000 measurements.
* High speed: 0.3 seconds per measurement.

* High accuracy and stability, capable of measuring ultra-thin coatings (1-5 μm).

* Wide measurement range with high resolution.

* Light-contact measurement achieves reliable precision.

* Automatic substrate recognition.

* Split-type design, facilitating measurements in narrow areas.

* Dot-matrix backlit display, parallax-free, suitable for night use.

* Auto power-off function for energy saving.

2. Technical parameters

* Display: LCD dot-matrix display

* Measurement Range: 0–1500 μm (Fe), Optional:0–3000 μm (Fe)
* Resolution: 0.1 μm (0–99.9 μm), 1 μm (100–3000 μm)
* Accuracy: 0–1500μm:±2%H +1μm, 1500–3000μm: ±3%H +1.5μm

* Minimum Substrate Thickness: 0.3 mm

* Minimum Curvature Radius: Flat and Straight

* Measurement Modes: Single/Continuous

* Units: μm/mil

* Power Supply: 2×1.5V AA batteries

* Operating Conditions: -10°C to 50°C, <80% RH

* Dimensions: 146×75×30 mm

* Weight: ~250 g (excluding batteries)

3.Package list

* Main Unit ×1

* Fe Calibration Block ×1

* AA Batteries ×2 (excluded for air transport)

* User Manual ×1

* Warranty Card ×1

* Carrying Case ×1

* Calibration Foils (50, 100, 250, 500, 1000 μm) ×1 set

Note: For the 0-3000 μm measurement range, the instrument is supplied with an additional 2000 μm calibration Foil
