Easy To Operate Portable Hardness Tester Compact Ultrasonic Hardness Tester Impact Resistant

Large Image : Easy To Operate Portable Hardness Tester Compact Ultrasonic Hardness Tester Impact Resistant

Product Details:

Place of Origin:	Hunan,China
Brand Name:	lingyang
Certification:	CNAS,SGS
Model Number:	LY190

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	RMB 1800-4000/Piece
Packaging Details:	carton，380x320x130mm,4.8kg
Delivery Time:	2-3 work days
Payment Terms:	L/C, T/T
Supply Ability:	20000pcs,per year

Contact Now Chat Now

Easy To Operate Portable Hardness Tester Compact Ultrasonic Hardness Tester Impact Resistant

Description

Test Method:	Leeb Hardness Test	Color:	Red
Impact Direction:	Auto Impact Direction	Force Applying Method:	By Screw
Max Sample Hight:	230mm	Statistics Function:	Average / Max. / Min. / S. Value
Sheets:	Thickness≤6mm	Impact Device Diameter:	20mm
Operating Temperature:	0-50°C	Display:	LCD
Accuracy:	+/-4 HLD
Highlight:	Compact Portable Hardness Tester , Impact Resistant Digital Hardness Tester , Compact Ultrasonic Hardness Tester

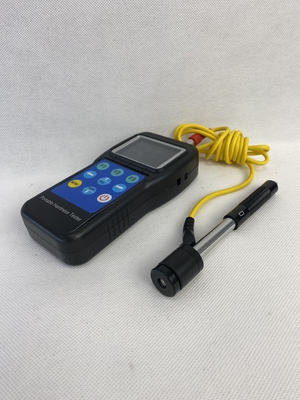

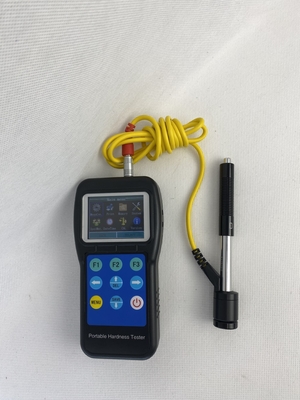

LY190 Portable Hardness Tester

Easy To Operate Portable Hardness Tester Compact Ultrasonic Hardness Tester Impact Resistant 0

TECHNICAL DATA

Measuring Materials	Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), copper and tin alloy, copper (bronze), forged steel
Measuring Range	HLD(170~960), HRC(17.9~69.5), HB(19~683), HV(80~1042), HS(30.6~102.6), HRA(59.1~88), HRB(13.5~101.7)
Indication Error	±6HLD (D impact device)
Measuring Direction	360°
Hardness Scale	HL, HB, HRB, HRC, HRA, HV, HS
Display	320x240 true color TFT screen
Data Memory	Max 600 groups (relative to impact times 1~32 adjustable)
Power	Rechargeable li-battery
Working Temperature	-20°C~55°C
Size	152x76x33mm
Weight	0.3kg

MAIN FEATURE

* Window menu style, ture color display;

* Easy to operate;

* Test at any angle, even upside down;

* Has a starting value calibration function, ensure the data is applicable and accurate in different codes and standards;

* Seven impact devices are available for special application. Automatically identify the type of impact devices;

* User calibration function;

* Battery information indicates the rest capacity of the battery and the charge status;

* Has the function of automatic alarm. Pre-set tolerance limit, beyond the range has automatic alarm, especially suitable for batch testing;

* Menu operation, information rich, intuitive, the realization of arbitrary switching material and hardness of system's key type, simple and convenient;

* Excellent after-sale service system for high quality products-two years warranty and all life maintenance.

* Narrow space also available to use;

* Support OEM Service;

* High price performance.Handheld Hardness Tester

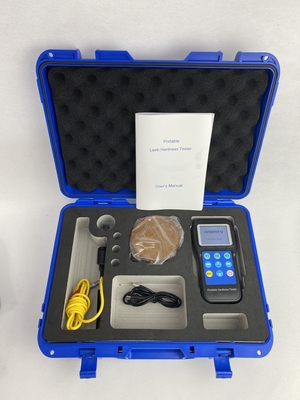

STANDARD DELIVERY

ITEM	QTY
LY190 Host	1 PC
Standard D Impact Device	1 PC
Standard Calibration Block	1 PC
Standard Support Ring	1 PC
Brush	1 PC
USB Cable	1 PC

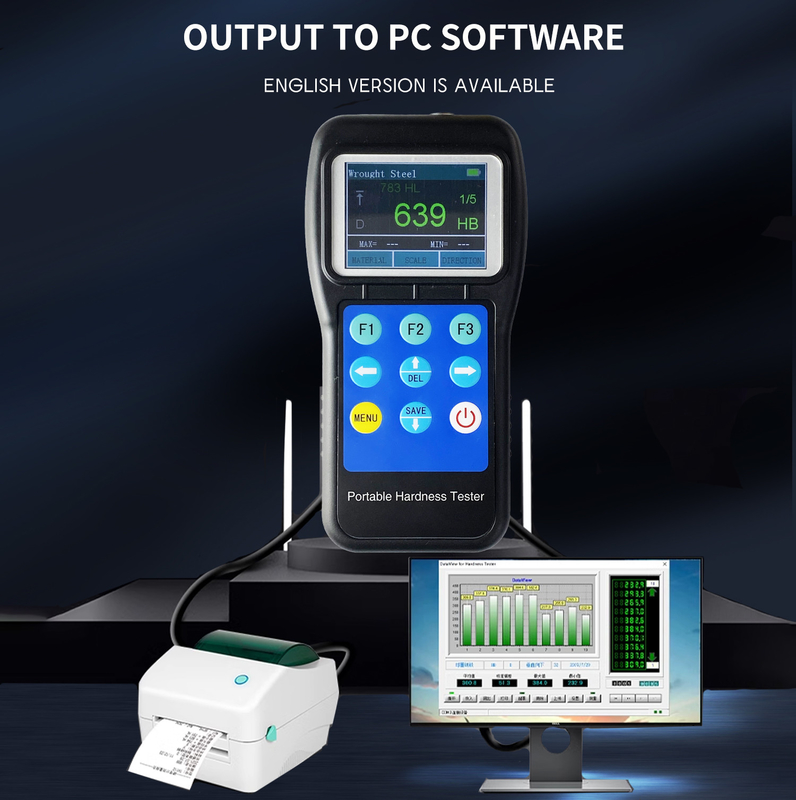

PC Software	1 PC
User Manual	1 PC
Instrument Case	1 PC
Warranty	2 Years

RELATED OPTIONAL ITEMS

Type of Impact Device

DC(D)/DL

D+15

Impacting energy

Mass of impact body

11mJ

5.5g/7.2g

11mJ

7.8g

2.7mJ

3.0g

90mJ

20.0g

11mJ

5.5g

Test tip hardness:

Dia. Test tip:

Material of test tip:

1600HV

3mm

Tungsten carbide

1600HV

3mm

Tungsten carbide

1600HV

3mm

Tungsten carbide

1600HV

5mm

Tungsten carbide

5000HV

3mm

synthetic diamond

Impact device diameter:

Impact device length:

Impact device weight:

20mm

86(147)/75mm

50g

20mm

162mm

80g

20mm

141mm

75g

30mm

254mm

250g

20mm

155mm

80g

Max. hardness of sample

940HV

1000HV

650HB

1200HV

Mean roughness value of sample surface Ra:

1.6μm

0.4μm

6.3μm

1.6μm

Min. weight of sample:

Measure directly with stand

Need coupling tightly

>5kg

2～5kg

0.05～2kg

>5kg

2～5kg

0.05～2kg

>1.5kg

0.5～1.5kg

0.02～0.5kg

>15kg

5～15kg

0.5～5kg

>5kg

2～5kg

0.05～2kg

Min. thickness of sample Coupling tightly:

Min. layer thickness for surface hardening:

5mm

≥0.8mm

5mm

≥0.8mm

1mm

≥0.2mm

10mm

≥1.2mm

5mm

≥0.8mm

Size of tip indentation

Hardness 300HV

Indentation diameter:

Depth of indentation:

0.54mm

24μm

0.54mm

24μm

0.38mm

12μm

1.03mm

53μm

0.54mm

24μm

Hardness 600HV

Indentation diameter:

Depth of indentation

0.54mm

17μm

0.54mm

17μm

0.32mm

8μm

0.90mm

41μm

0.54mm

17μm

Hardness 800HV

Indentation diameter:

Depth of indentation

0.35mm

10μm

0.35mm

10μm

0.35mm

7μm

0.35mm

10μm

Application

DC type used to measuring hole or inside face of cylinder,

DL type used to measuring elongated narrow slot or hole,

D type for routine measurements.

Suitable for measuring surface of the trench or concave.

Suitable for measuring thin workpiece and harden surface.

Suitable for heavy or rough castings and forgings.

Suitable high hardness material.

Easy To Operate Portable Hardness Tester Compact Ultrasonic Hardness Tester Impact Resistant 2

	Standard Hardness Calibration Block With high accuracy standard hardness value, use for calibration of leeb hardness tester.
	Support Ring for Hardness Tester Suitable for difference measure situation, 12 pcs/ set
	Connecting Cable for Hardness Tester and Probe
	Mini Thermal Printer External printer, connect by USB interface, suitable for Kairda models.
	Thermal Printing Paper Suitable for mini thermal printer and Kaidas’s tester with built-in printer Packing: 10pcs/bag
