| Detector: | Silicon Photodiode | Wavelength: | 400 - 700nm |
|---|---|---|---|
| Wavelength Interval: | 10nm | Design For: | Traffic Sign |
| Spectrophotometric Mode: | Flat Grating | Integrating Sphere Size: | Φ40mm |
| Storage Temperature: | -20-50°C | ||
| Highlight: | Long Lasting Handheld Colorimeter,Convenience Handheld Color Meter,Battery Powered Portable Color Meter |
||

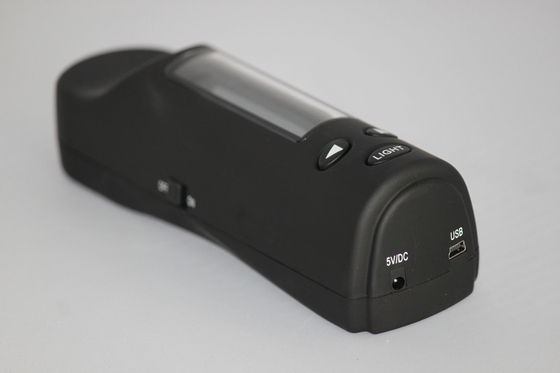

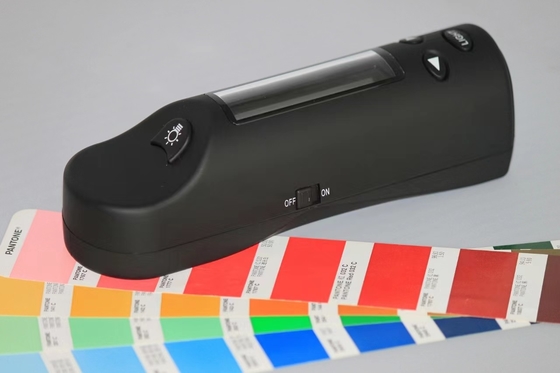

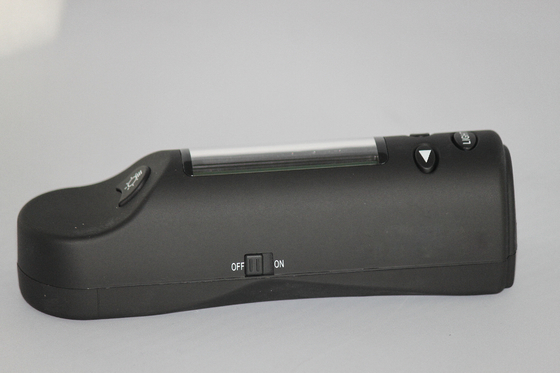

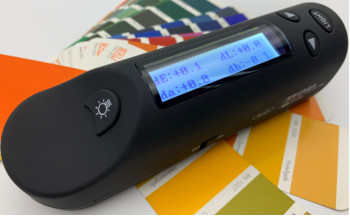

LY810 Portable Colorimeter
![]()
Product Parameters
| Test Repeatability | Within 0.2 ΔEab (measuring white board 30 times) |
| Display | ΔEab,CIE Lab, ΔL, Δa, Δb, CIE Lch |
| Test range | L:0-100 a:-128—127 b:-128—127 |
| Test time | About 2 seconds |
| Test interval | 2 seconds |
| Test aperture | Φ 8mm |
| Storage | Keep a group of data |
| Measuring condition | CIE 10° standard observer |
| Optical system | 45/0 (lighting/diffusion) |
| Light source | C light source |
| Sensor | Correct silicon photodiode carrays |
| Power | Two 1.5 V AAA sized*2 battery DC 5V |
| Size |
171*50*48.8mm |
| Weight |
203.6 (Exclusive battery) |
| Temperature/humidity | 0°—40°C,Relative humidity<85%,no condensation |

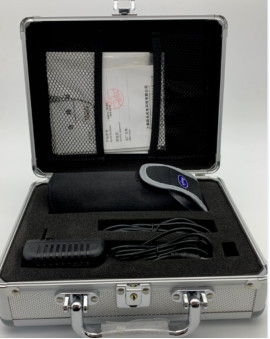

| Standard accessories | 1PC manual,AC/DC adaptor ,USB cable,CD |
| Application | Measure any color of smooth surface |
Product Features:
![]()
* Fit for the internal color control of enterprise;
* Rapid, Stable and Precise;
* Easy operation, convenience and durability;
* L*a*B and L*C*H dual data pattern query ;
* 3V battery powered, low power consumption design
MEET THE COLOR DEMAND OF VARIOUS INDUSTRIES
Apply to the spraying field, plastic cement field, printing field, metallic surface and other fields.
* Hand-hold portable colorimeter, applying to the rapid color control.Firstly measure the target, and then measure the sample again, after 2 seconds you can get the color difference
* The characteristics are the stable performance, high accuracy, lightness,and convenient for carry-on which is especially for the measurement on the production and operation site, and gain the color difference values rapidly and accurately.
