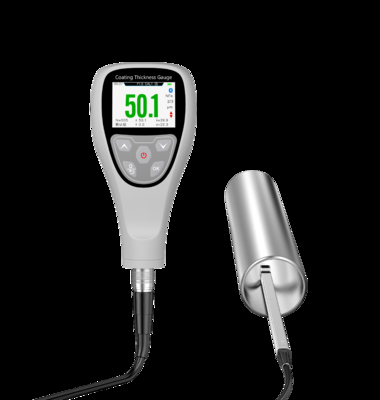

LY-985F190 Specialized Coating Thickness Gauge enables non-destructive measurement of non-magnetic coatings (e.g., aluminum, chromium, copper, enamel, rubber, paint, etc.) on magnetic metal substrates (e.g., steel, iron, alloys, hard magnetic steel, etc.) for pipeline inner walls.

1. Features

* Spring-guided probe with ultra-wear-resistant alloy tip ensures consistent contact pressure and stable measurement accuracy even on hard or rough surfaces, with a durability exceeding 500,000 measurements.
* High speed: 0.3 seconds per measurement.

* High accuracy and stability, capable of measuring ultra-thin coatings (1-5 μm).

* Supports hot-swappable interchange of multiple probe types.

* Wide measurement range with high resolution.

* Light-contact measurement achieves reliable precision.

* Automatic substrate recognition.

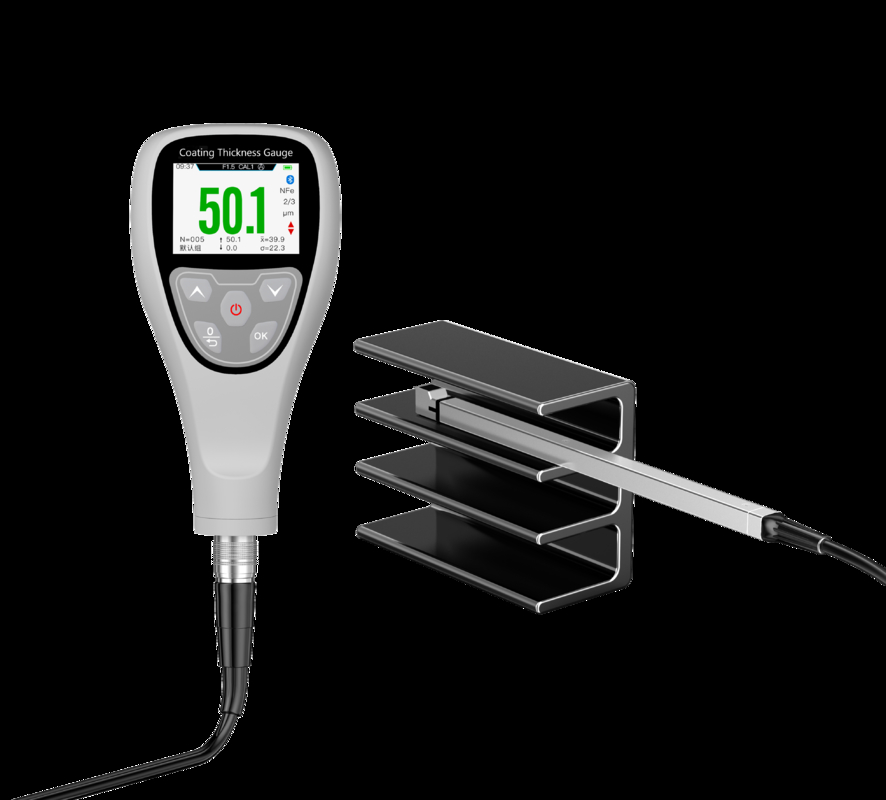

* Split-type design, facilitating measurements in narrow areas.

*Four display modes: Readings Only, Readings& Statistics, Readings& Bar Graph, Readings& Run Chart.

* Statistical functions: Average (x̄), Max/Min, Standard Deviation (σ), Count (N).

* Four calibration modes: Zero Calibration, One Point Calibration, Two Point Calibration, Five Point Calibration.

* HD color screen with auto-rotation for multi-angle viewing.

* Supports USB connection to PCs for data acquisition and automated report generation, facilitating efficient corporate data management.

* Large storage capacity: 16 groups, 100 data points per group (total 1,600).

* Upper/lower limit alarms.

2. Technical parameters

* Display: 320×240 HD color LCD

* Measurement Range: 0–1500 μm
* Resolution: 0.1 μm (0–99.9 μm), 1 μm (100–1500 μm)
* Accuracy: ±2%H +1μm

* Minimum Substrate Thickness: 0.3 mm

* Minimum Curvature Radius: Flat and Straight

* Measurement Modes: Single/Continuous

* Units: μm/mil

* Power Supply: 2×1.5V AA batteries or USB

* Battery Life: 15 hours (continuous use)

* Operating Conditions: -10°C to 50°C, <80% RH

* Dimensions: 134×67×38 mm

* Weight: ~80 g (excluding batteries)

3.Package list

* Main Unit ×1

* Fe Calibration Block ×1

* AA Batteries ×2 (excluded for air transport)

* User Manual ×1

* Warranty Card ×1

* Carrying Case ×1

* USB Cable ×1

* Calibration Foils (50, 100, 250, 500, 1000 μm) ×1 set
