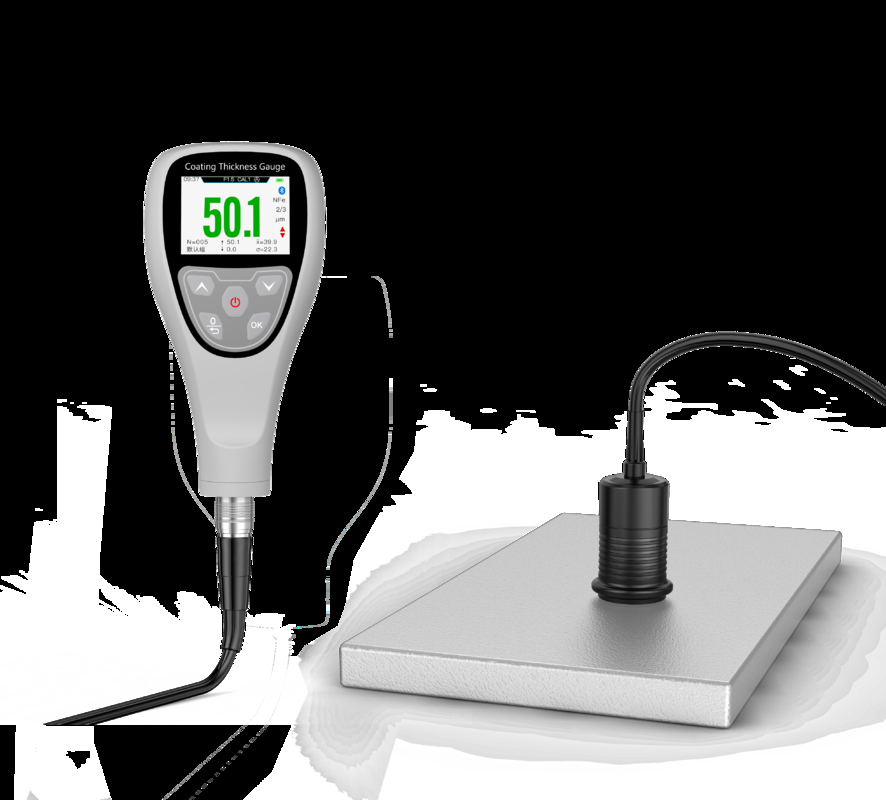

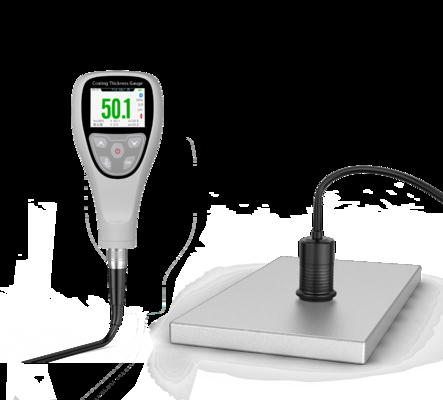

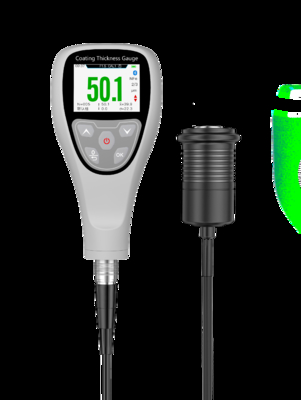

LY-985FH coating thickness gauge can non destructively measure the thickness of non-magnetic coatings (e.g. aluminium, chrome, copper, enamel, rubber, paint, etc.)on magnetic metel materials (e.g. steel, iron, alloy, hard magnetic steel, etc.)

1. Features

* Wide measurement range with high resolution.

* Automatic substrate recognition.

*Four display modes: Readings Only, Readings& Statistics, Readings& Bar Graph, Readings& Run Chart.

* Statistical functions: Average (x̄), Max/Min, Standard Deviation (σ), Count (N).

* Four calibration modes: Zero Calibration, One Point Calibration, Two Point Calibration, Five Point Calibration.

* HD color screen with auto-rotation for multi-angle viewing.

* Supports USB connection to PCs for data acquisition and automated report generation, facilitating efficient corporate data management.

* Large storage capacity: 16 groups, 100 data points per group (total 1,600).

* Upper/lower limit alarms.

2. Technical parameters

* Display: 320×240 HD color LCD

* Measurement Range: 0–10000 μm
* Resolution: 0.1 μm (0–99.9 μm),1 μm (100–999 μm),0.01 mm (1.00–9.99 mm),0.1mm(10.0mm)
* Accuracy: ±3%H +1.5μm

* Minimum Substrate Thickness: 0.3 mm

* Minimum Curvature Radius: F:凸 20mm

* Measurement Modes: Single/Continuous

* Units: μm/mil

* Power Supply: 2×1.5V AA batteries or USB

* Battery Life: 15 hours (continuous use)

* Operating Conditions: -10°C to 50°C, <80% RH

* Dimensions: 134×67×38 mm

* Weight: ~80 g (excluding batteries)

3.Package list

* Main Unit ×1

* Fe Calibration Block ×1

* AA Batteries ×2 (excluded for air transport)

* User Manual ×1

* Warranty Card ×1

* Carrying Case ×1

* USB Cable ×1

* Calibration Foils (250, 500, 1000, 2000, 4000, 8000μm) ×1 set
