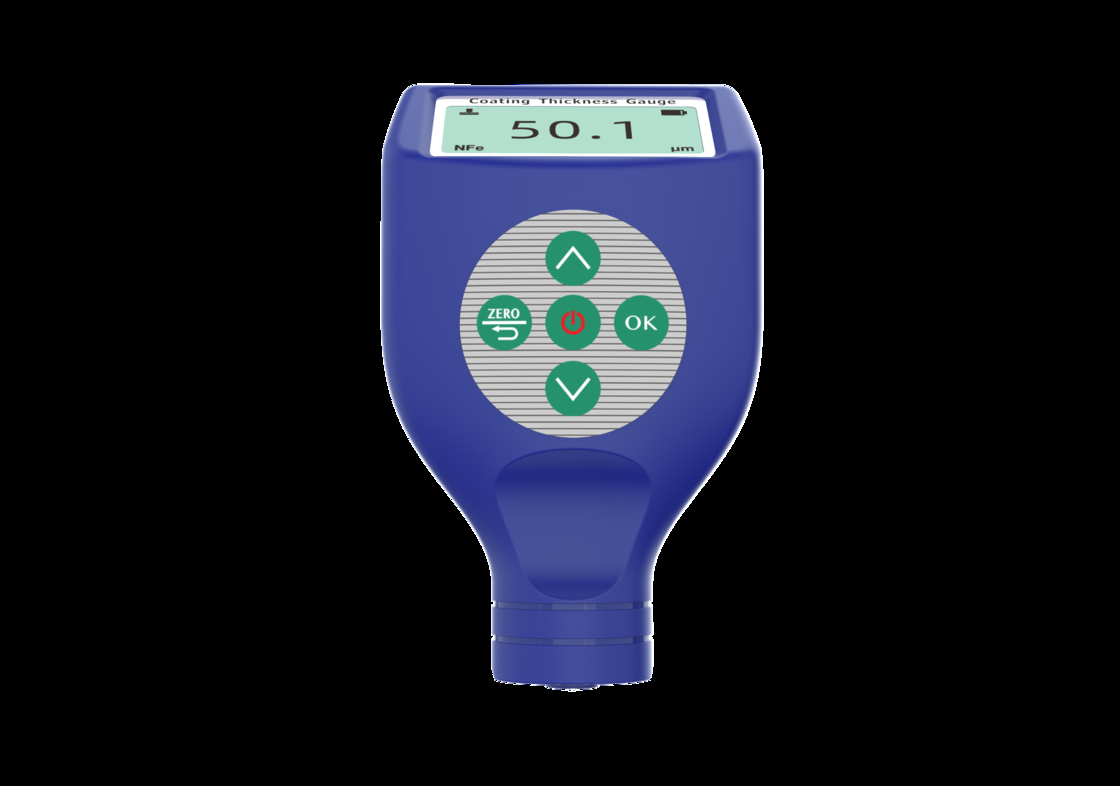

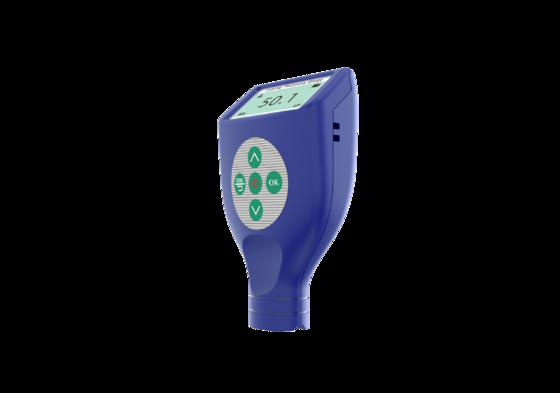

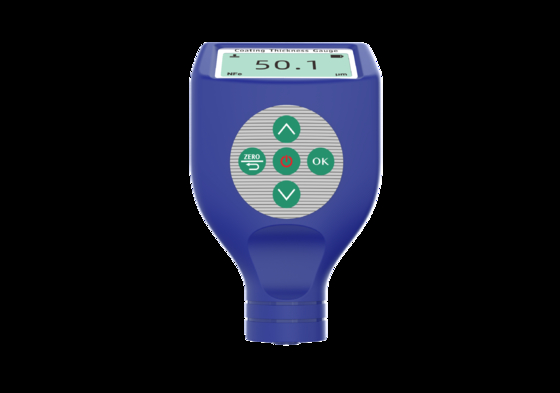

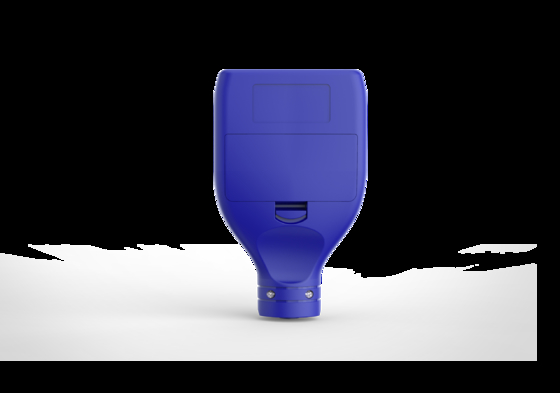

LY-800B coating thickness gauge can non destructively measure the thickness of non-magnetic coatings (e.g. aluminium, chrome, copper, enamel, rubber, paint, etc.) on magnetic metel materials (e.g. steel, iron, alloy, hard magnetic steel, etc.) and the thickness of non-conductive coatings (e.g. enamel, rubber, paint, plastic, etc.) on non-magnetic metal substrates (e.g. copper, aluminium, zinc, tin, etc.)

1. Features

1.1. Adopt high-speed MCU and advanced algorithm to ensure the accuracy and efficiency of measurement. The instrument supports fast measurement and continuous measurement, and the measurement speed can reach 0.3s/time.

1.2.It meets the standards of ISO2178 ,ISO2360,DIN,ASTM and BS..

1.3. The wear-resistant metal probe can ensure stable data when measuring on hard or rough surfaces, and the probe wears more than 500,000 times.

1.4.Use LCD display to ensure good visual effect.

1.5. Reasonable structure design makes the machine comfortable to operate, small in size, light in weight and easy to carry.

1.6. Wide measurement range, high precision and good stability, which can meet the measurement of ultra-thin coatings.

1.7. Widely used in manufacturing, such as metal manufacturing, chemical, commodity inspection and other measurement fields area.

2. Technical parameters

* Standard measuring range:0~1500μm, Resolution: 0.1μm (0-99.9μm), 1μm (100-1500μm)

* Measurement Accuracy : ±2%H+1μm

* Thinnest Substrate: 0.3mm

* Minimum Curvature: convex 5mm/concave 25mm

* Power Supply: 2×1.5v AAA batteries

* Operating Conditions: temperature: -10~ 50℃, humidity: 10-85%RH

* Unit Options : μm / mil

* Measurement Mode: Single/Continuous

* Product Size: 101×61×26mm

* Product Weight: 54g (without batteries)

3.Package list

* Main machine × 1

* Iron substrate × 1

* Aluminum substrate × 1

* AAA battery × 2 ( Not included if by air )

* Standard films × 5 (50 100 250 500 1000μm)

* Manual × 1

* Warranty Card × 1

* Packing box × 1
