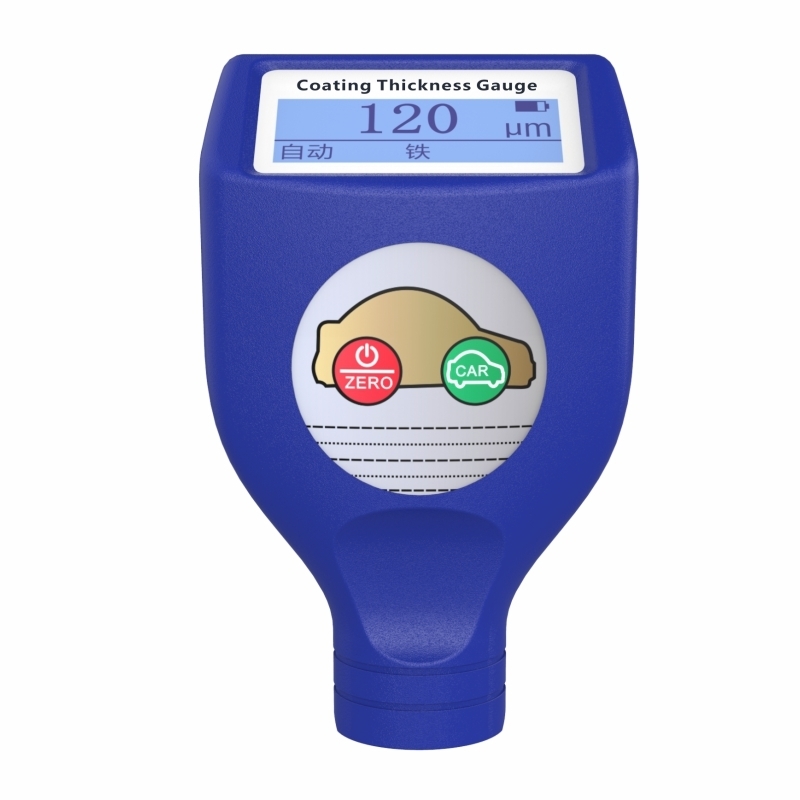

The LY-C801 Iron Putty Paint Thickness Gauge is professionally designed for automotive coating measurement, utilizing magnetic induction and eddy current technologies with automatic substrate identification to deliver fast, non-destructive, and precise paint thickness measurements.

1. Features

1.1.With iron putty detection alert function.

1.2.Adopt high-speed MCU and advanced algorithm to ensure the accuracy and efficiency of measurement. The instrument supports fast measurement and continuous measurement, and the measurement speed can reach 0.3s/time.

1.3. The wear-resistant metal probe can ensure stable data when measuring on hard or rough surfaces, and the probe wears more than 500,000 times.

1.4.It meets the standards of ISO2178 ,ISO2360,DIN,ASTM and BS..

1.5.Use LCD display to ensure good visual effect.

1.6. Wide measurement range, high precision and good stability, which can meet the measurement of ultra-thin coatings.

1.7. Reasonable structure design makes the machine comfortable to operate, small in size, light in weight and easy to carry.

2. Technical parameters

* Standard measuring range:0~2000μm, Resolution: 0.1μm (0-99.9μm), 1μm (100-2000μm)

* Measurement Accuracy : ±3%H+1.5μm

* Thinnest Substrate: 0.3mm

* Minimum Curvature: convex 5mm/concave 25mm

* Power Supply: 2×1.5v AAA batteries

* Operating Conditions: temperature: -10~ 50℃, humidity: 10-85%RH

* Unit Options : μm / mil

* Measurement Mode: Single/Continuous

* Product Size: 101×61×26mm

* Product Weight: 54g (without batteries)

3.Package list

* Main machine × 1

* Iron substrate × 1

* Aluminum substrate × 1

* AAA battery × 2 ( Not included if by air )

* Standard films × 1 (100μm)

* Manual × 1

* Warranty Card × 1

* Packing box × 1
